PM70

PM70

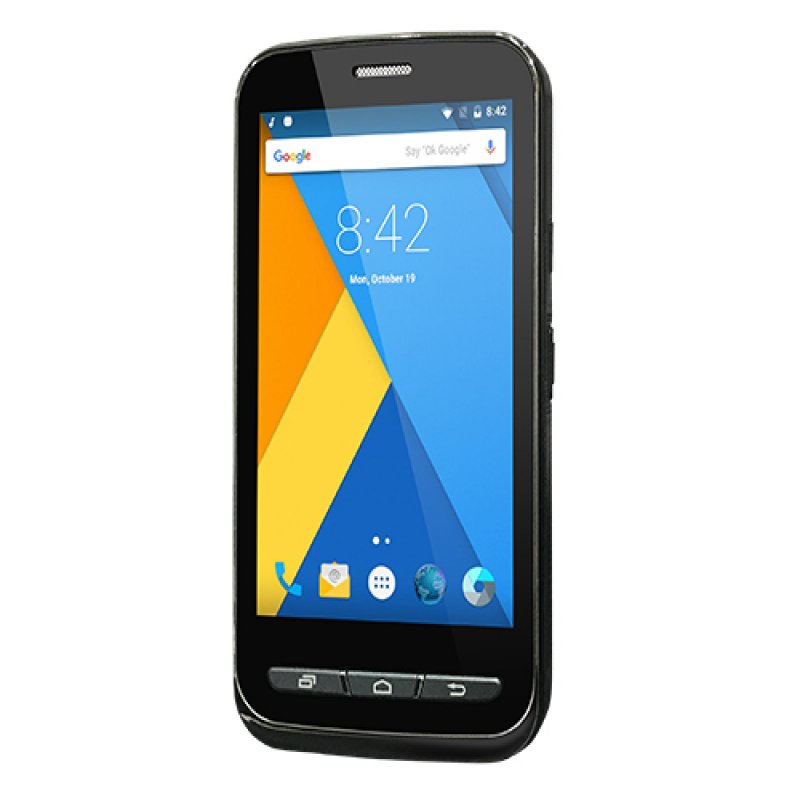

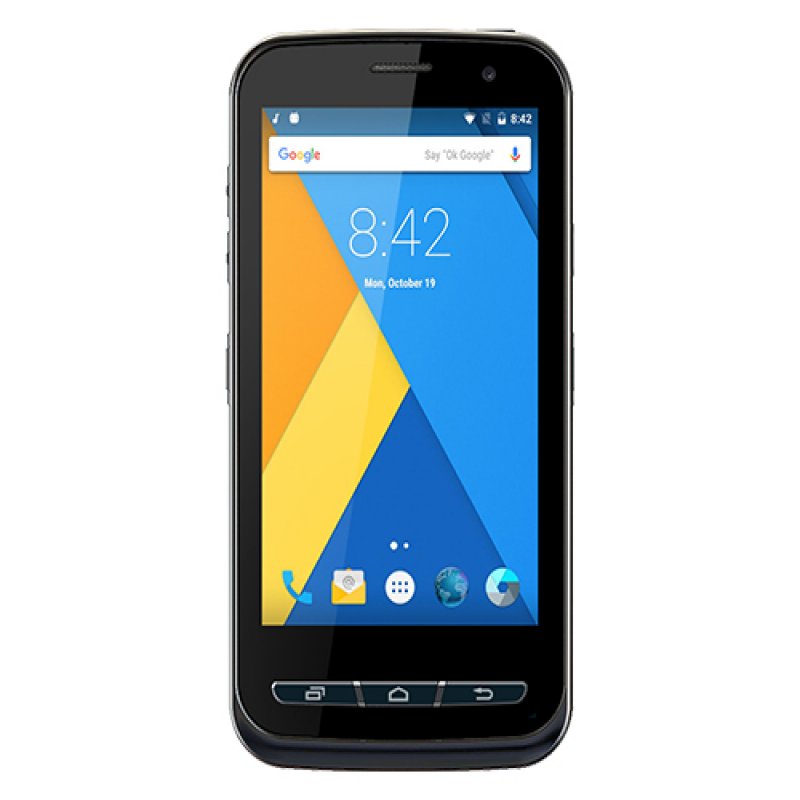

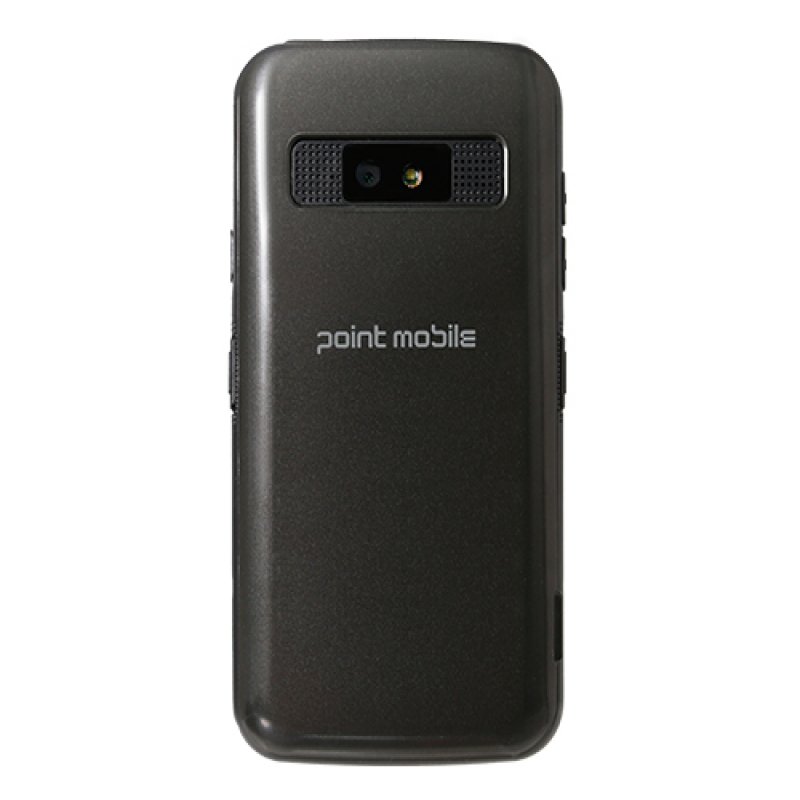

PM70 is 4.3 inch screen full touch mobile terminal with Qualcomm 1.2 GHz Quad core, IEEE 802.11 a/b/g/n, 2D laser scanner, Bluetooth v4.0. This pocket sized mobile terminal can stand up to 1.2m (4ft) along with IP67 water and dust protection.

Powerful Qualcomm Snapdragon will empower your work
Qualcomm's Snapdragon MSM8916 processor is a market-proven AP(Application Processor) which has Quad-Core with up to 1.4GHz clock speed. It is truly SoC(System on a Chip) having 4G LTE, Wireless LAN, Bluetooth, S-GPS and Camera bus interface.

Google Android 6.0.1 Marshmallow is the heart of system
PM70 runs on Google's latest Android 6.0.1 Marshmallow Operating System and it is certified by Google Mobile Services (GMS) to support all Google official API including Google Play and Google Maps

Wider & Brighter IPS display provides better visibility
PM70 adopts 4.3" IPS panel TFT-LCD with capacitive touch screen and it supports wide-viewing angle and daylight readability in order to maximize the best performance in the outfield. To support harsh environment, top of screen is protected Corning Gorilla Glass 3 tempered glass.

Frequently-using Android "HARD" keys towards field-work-forces
Most of Enterprise rugged phones in the market adopt a touch-based key button, even for Recent App, Home, Back button. Not every user wearing gloves prefers to use a stylus pen in the field, PM70 comes with “hard” laser-cut keys – to ease to press it firmly.

Powerful Wireless; 4G LTE & IEEE 802.11 a/b/g/n and Bluetooth 4.1 LE
As of Enterprise mobility purposes, PM70 is completely tuned for Enterprise work-forces; smooth hand-over between WWAN and WLAN each other, seamless roaming among many routers & access points in the harsh working environment, because Enterprise users prior seamless connectivity to speed. PM70’s 4G LTE category 4 is truly designed for covering all worldwide including United States and Europe. Newest Bluetooth Low Energy supports dramatic low power consumption and 3x faster speed than previous Bluetooth version, which specification is getting more critical at location-based solutions like Beacon.

Compact pocket-sized but yet still rugged design
PM70 is designed not only for Line-of-Business workers but also white-color businessmen, therefore, compact-sized but adopts latest 1D/2D barcode scanners and replaceable & hot-swap supporting 3,000mAh battery. To be survived and to be used for long time in outfield, PM70 is sealed completely to be submerged for 30minutes at 1meter-depth water, and is shock-proof with Gorilla Glass 3 and 1.2m(4ft) multiple drop-resistant.

Physical characteristics
Dimensions with battery:
70mm x 136mm x17.4mm (2.76 x 5.35 x 0.69 inch)
Weight: 213g (7.5oz) with battery

Environmental
Operating: -20°C to 60°C (-4°F to 140°F)
Storage: -25°C to 70°C (-13°F to 158°F)
Relative Humidity: Non-condensing, 95%
Rain & Dust Proof: IP67
Drop Specification: 1.2m (4 ft) per MIL-STD 810G
Electrostatic Discharge:
+/- 15 kV air discharge +/- 8 kV contact discharge

Power
Battery : Li-Ion, 3.8V 3,000mAh,
Rechargeable, UN38.3 certificate,
UL2054/UL1642,IEC62133 KC/PSE
Supports micro USB charging

Wireless Charging
Wireless charging pad (Optional)
Complying with WPC standard Qi
Using inductive charging technology

Operating System
Google Android 6.0.1 Marshmallow
(CTS & GMS certified)

Micro-Processor
Qualcomm MSM8916 @ up to 1.4GHz Quad-core

Memory and Storage
Memory: 2GB RAM
ROM: 16GB NAND Flash
User-accessible micro-SD cards up to 32GB SDHC

Display
4.3 in. IPS panel WVGA (480 x 800 pixel),
exceptionally bright, outdoor viewable,
optically bonded to touch

Touch Panel
Multi-touch capacitive touch panel,
optically bonded with Corning Gorilla glass for
strong and rugged durability. Works even when
wet and with many off-the-shelf gloves.

Standard Communications
High speed USB 2.0 from cradle and Micro-USB port

Camera
13MP (Rear) with LED flash and 2.0MP (Front)

Keypad Options
3 hard keys (Recent, Home & Back)










Sensors
Accelerometer, Ambient light sensor, Proximity sensor,
Gyro and Digital compass

Wireless WAN
EDGE/GPRS/GSM:900/1800
3G HSPA: B1/2/5/6/8/19
4G LTE FDD: B1/2/3/4/5/7/8/17/20
4G LTE TDD: B40/41

Wireless LAN
IEEE 802.11 a/b/g/n Data rates: Up to 150Mbps
Operating Channels: 1 to 13 (2.4GHz & 5GHz)
Regulatory Compliance: As per IEEE 802.11n
Security: WEP / WPA / WPA2 and more
Authentication: PEAP/MS-CHAPv2, EAP-TLS

Wireless PAN
Integrated Bluetooth Class II, Ver. 4.1
Operating Channels: 0 to 78 (2402-2480MHz)
Data Rates: 1, 2, 3Mbps

Global Positioning System
12 channel integrated GPS:
Assisted via WAN carrier, Support GLONASS

NFC (Near Field Communication)
ISO14443A, ISO14443B & ISO15693 are
supportive, 13.56MHz HF
*Supported Tag-Ics:
MIFARE® 1k, MIFARE 4k, MIFARE Plus,
MIFARE UltraLight, MIFARE UltraLight C,
MIFARE DESFire, MIFARE DESFire EV1,
ISO 14443A/B tags,

Integrated Barcode Scanner
2D Imager scanner: Supporting all 1D/2D standard
symbology including GS1 databar

LED Indicator & Scan Alert
Indicator: 2 x dual color LEDs on front.
1) Power indications, 2) Warning indications,
3) Scan reading
Scan Alert: Vibration, beep


Audio Support
Support VoIP, built-in two microphone (Noise-cancelling),
speaker, receiver and headset jack (3.5mm),
wireless Bluetooth headset support

Accessories
Standard Accessories: AC/DC power adaptor &
country plug, Standard battery, LCD protection film,
USB cable
Optional Accessories: Wireless charging pad,
Single-slot cradle, 4-slot cradle, 4-slot battery charger



STANDARD ACCESSORIES
: AC/DC Power Adaptor, Country Plug, Standard Battery, LCD Protection Film, USB Cable
  • AC/DC Power Adaptor
  • Country Plug
  • Standard Battery
  • LCD Protection Film
  • USB Cable

OPTIONAL ACCESSORIES
: Wireless Charging Pad, Single-slot Cradle, 4-slot Cradle, 4-slot Battery Charger
  • Wireless Charging Pad
  • Single-slot Cradle
  • 4-slot Cradle
  • 4-slot Battery Charger
